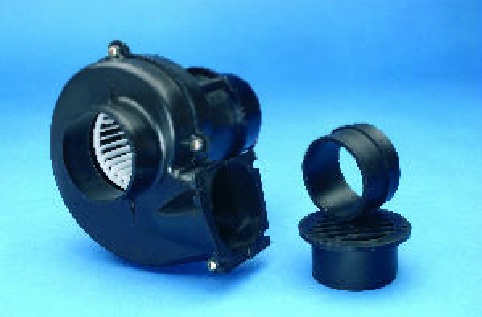

BILGE BLOWER -FLANGE MOUNT -FLEX MOUNT
Certificated by ISO 8846-Direction CE94/25N°3016808 (Antiexplosion)
We manufacture a wide selection of marine blowers in strong nylon material homologated by R.I.N.A and with different capacity from 280 m3 to 1000 m3 per hour. Screws and shaft in stainless steel.
Flex mount and very strong dynamic flange mount. Low current draw. Countinuous duty. Best
ratio on the market between volume air flow and compact size. All models are ignition protected
ISO 8846. Complying with ISO 8849,EN 55014,ISO 10133.
Extended Life Hour Motor
- Tough Reinforced Thermoset Plastic Housing
- Mounts To Any Flat Surface
- Slip-On Inlet Ducting Connection
- Efficient High Volume Air Flow
- Low-Current Draw
- Corrosion-Resistant Materials
- Meets USCG Electrical Regulations
- ISO 8846 for Ignition Protection
- CE Conforms with EN 5008-1 for Supression of Electro-magnetic
FLANGE MOUNT.
CAPACITY: 280 m3/h 163cfm CD. 5500001212 12 V. Amp 3,9
DIMENSIONS:200x165x195mm CD. 5500001224 24 V. Amp 2,5
PORT CONNECTIONS:Inlet:75 mm -Outlet: 72 mm
CAPACITY: 550 m3/h 324cfm CD. 5500101212 12V. Amp 12
DIMENSIONS:290x257x150 mm CD.5500101224 24 V.Amp 6
PORT CONNEC-TIONS:Inlet:110 mm -Outlet:103 mm
CAPACITY:750 m3/h 441 cfm CD. 5500101412 12V. Amp 14
DIMENSIONS:290x257x150 mm CD. 5500101424 24V. Amp 7
PORT CONNECTIONS: In-let:150 mm -Outlet:103 mm
CAPACITY:1000 m3/h 589cfm CD. 5500101624 24 V. Amp 16
DIMENSIONS:290x257x180 mm
PORT CONNEC-TIONS:Inlet:150 mm -Outlet:103 mm
FLEX MOUNT.
CAPACITY: 550 m3/h 324cfm CD. 5500102212 12 V. Amp 12
DIMENSIONS:290x257x150 mm CD. 5500102224 24 V. Amp 6,0
PORT CONNECTIONS:Inlet:110 mm -Outlet:103mm
CAPACITY:750 m3/h 441 cfm CD. 5500102412 12 V. Amp 14
DIMENSIONS:290x257x150 mm CD. 5500102424 24 V. Amp 7
PORT CONNECTIONS: Inlet:150 mm -Outlet:103 mm
CAPACITY:1000 m3/h 589 cfm CD. 5500102624 24 V. Amp 16
DIMENSIONS:290x257x180mm
PORT CONNECTIONS:Inlet:150 mm -Outlet:103 mm
