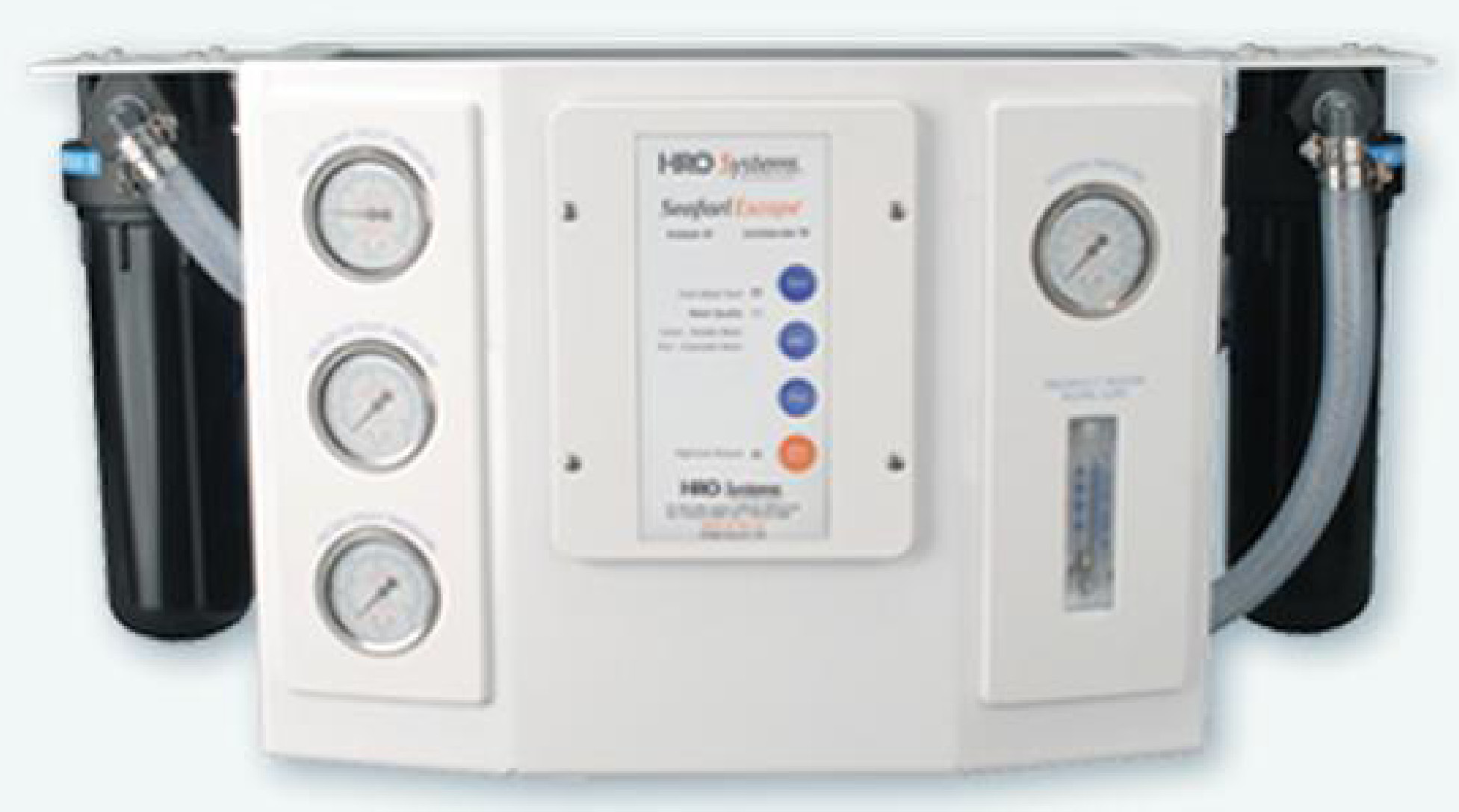

EGO SEAFARI ESCAPE COMPACT

OVERVIEW (概述)

Featuring Horizon Reverse Osmosis’s EfficientSea technology, the Seafari Escape is capable of reducing its total power consumption by up to 75%. With the installation of its patented Energy Transfer Device, the need for a high-pressure pump is eliminated. The result is a system that is efficient, virtually noiseless and capable of running on either AC or DC power. Producing between 200 to 600 gallons per day, the Seafari Escape is perfectly suited for smaller to mid-sized yachts.



 FEATURES:

  • Production options of 200, 400, and 600 Gallons per day • 757, 1,514, and 2,271 liters per day
  • 8 to 25 Gallons per hour • 30 to 95 liters per hour.
  • Extremely quiet, smooth, and with complete vibration isolation.
  • Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
  • A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
  • High rejection, high yield, commercial grade, and chemical resistant Membranes.
  • Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
  • Exclusive high efficiency Booster Pump
  • Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).
  • Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
  • New Flow Meter for visual monitoring of the product water flow
  • All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
  • Water Quality Indication LED
SPECIFICATIONS (規格):

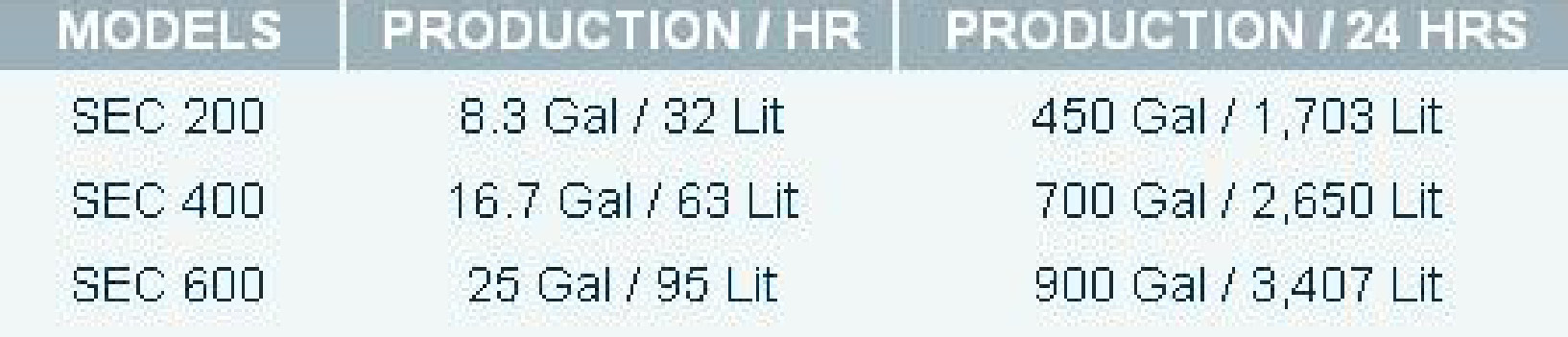

  • Product Water Produced per hour of operation: +-15% 850 psi / 56 Bar, 77°F / 25°C & 35,000 ppm TDS typical sea water
  • Salt Rejection (Chloride Ion): Minimum 99.2%, Average 99.4%
  • Product Water Temperature: Ambient to feed water temperature.
  • Salinity Monitoring: The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
  • Salinity Range: Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
  • Temperature Range: Min. 33°F / .5°C Max. 122°F / 50°C
  • System Feed Water: Flow: 50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 – 4.2 gpm / 11.4 – 15.9 lpm
  • Reverse Osmosis Membrane: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
  • Chlorine Tolerance: 0.1 ppm
  • pH Range: 3-11 ( typical seawater pH is 8 )
  • System Pressure:Feed Water from Feed Water Pump Inlet to Energy Transfer Device
    Nominal at 35,000 ppm TDS feed water salinity and 77°F / 25°C
    SEC 200: 100 psi / 6.90 bar / 7.03 Kg/cm2 / 689.5 kPa
    SEC 400: 110 psi / 7.58 bar / 7.73 Kg/cm2 / 758.5 kPa
    SEC 600: 160 psi / 11.03 bar / 11.25 Kg/cm2 / 1,103.2 kPaOperation Pressure at the R.O. Membrane Element
    Nominal at 35,000 ppm TDS feed water salinity and 77°F / 25°C
    SEC 200: 600 psi / 41.37 bar / 42.18 Kg/cm2 / 4,137 kPa
    SEC 400: 625 psi / 43.09 bar / 43.94 Kg/cm2 / 4,309 kPa
    SEC 600: 825 psi / 56.88 bar / 58.00 Kg/cm2 / 5,688 kPa
  • External Installation Water Connections: Pipe sizes supplied by the installer for connection of Horizon Reverse Osmosis supplied components.
    Feed Inlet: 1/2″ MNPT (Male National Pipe Thread, Amer. Std)
    Brine Discharge: 1/2″ FNPT (Male National Pipe Thread, Amer. Std)
    Product: 1/4″ FNPT (Female National Pipe Thread, Amer. Std)

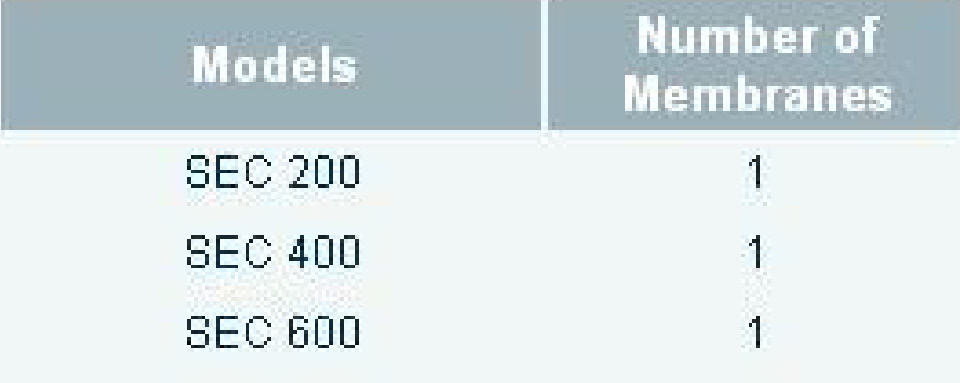

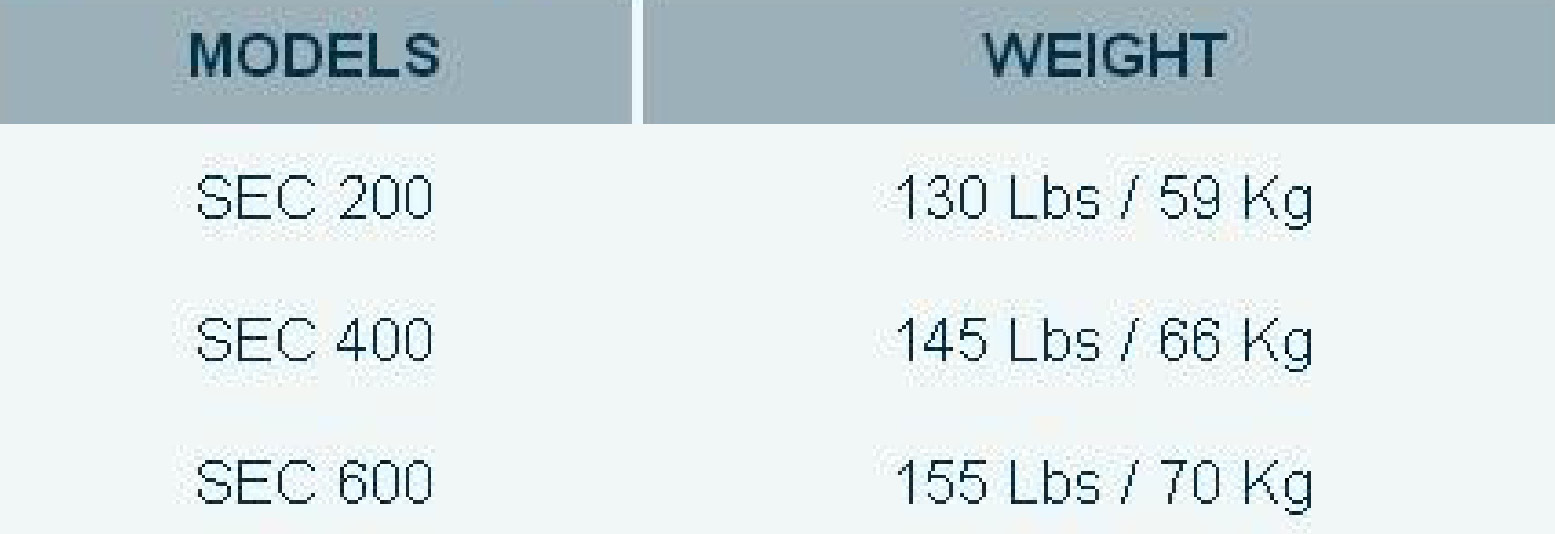

  • System Model Weights

  Electrical Power Specifications – High Pressure Pump Motor:

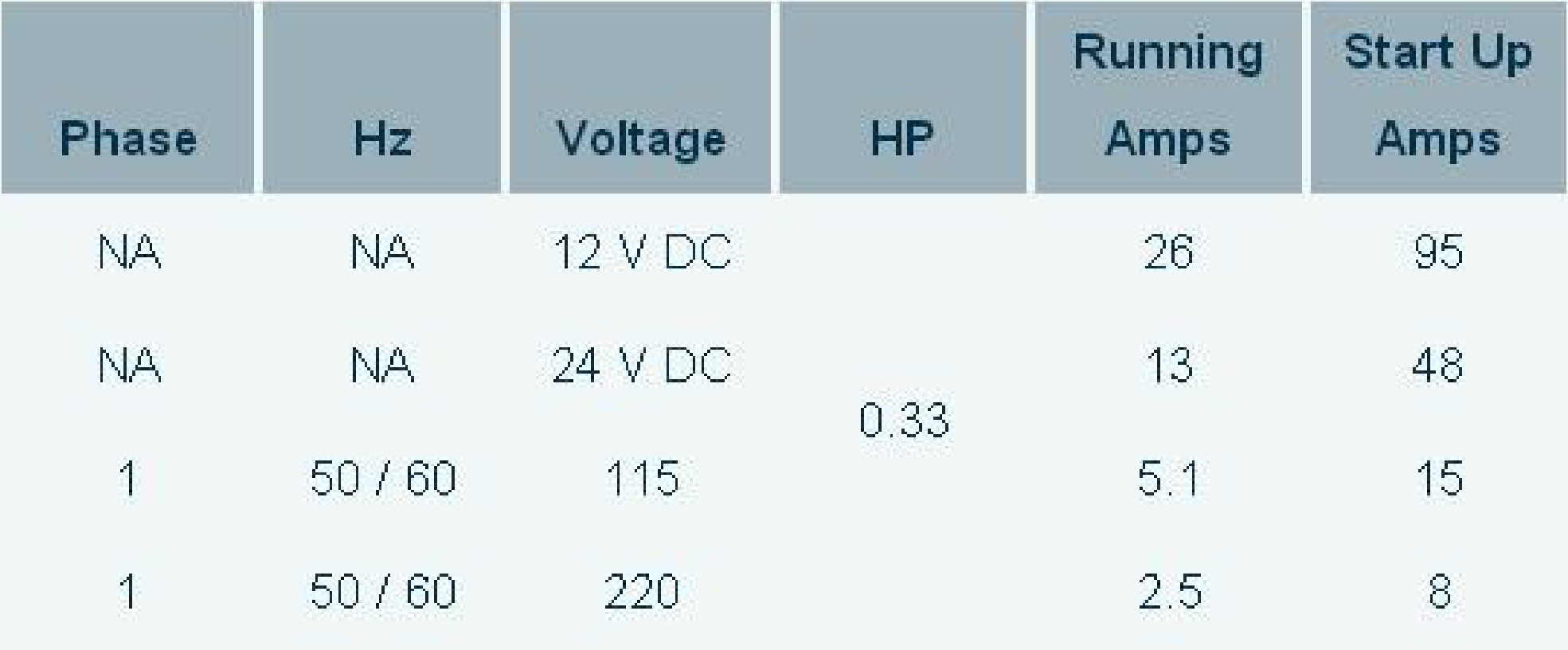

  Escape 200:

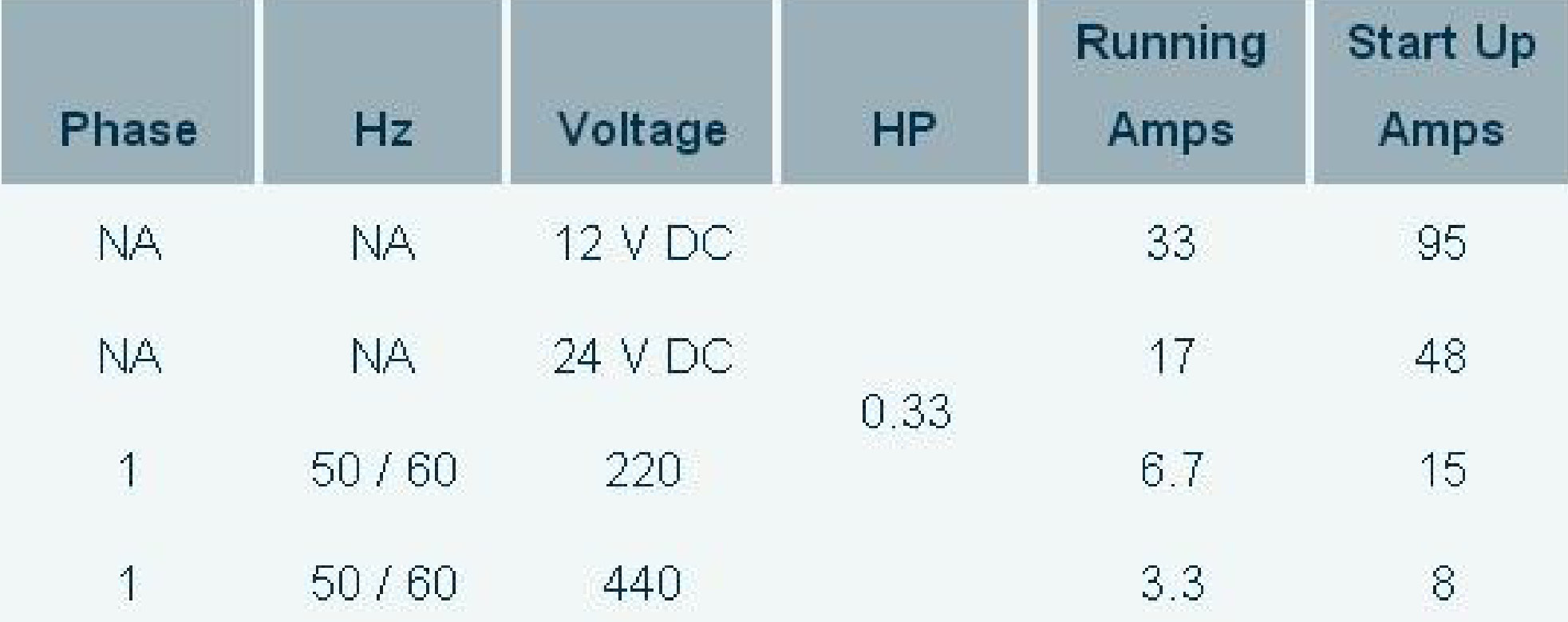

Escape 400:

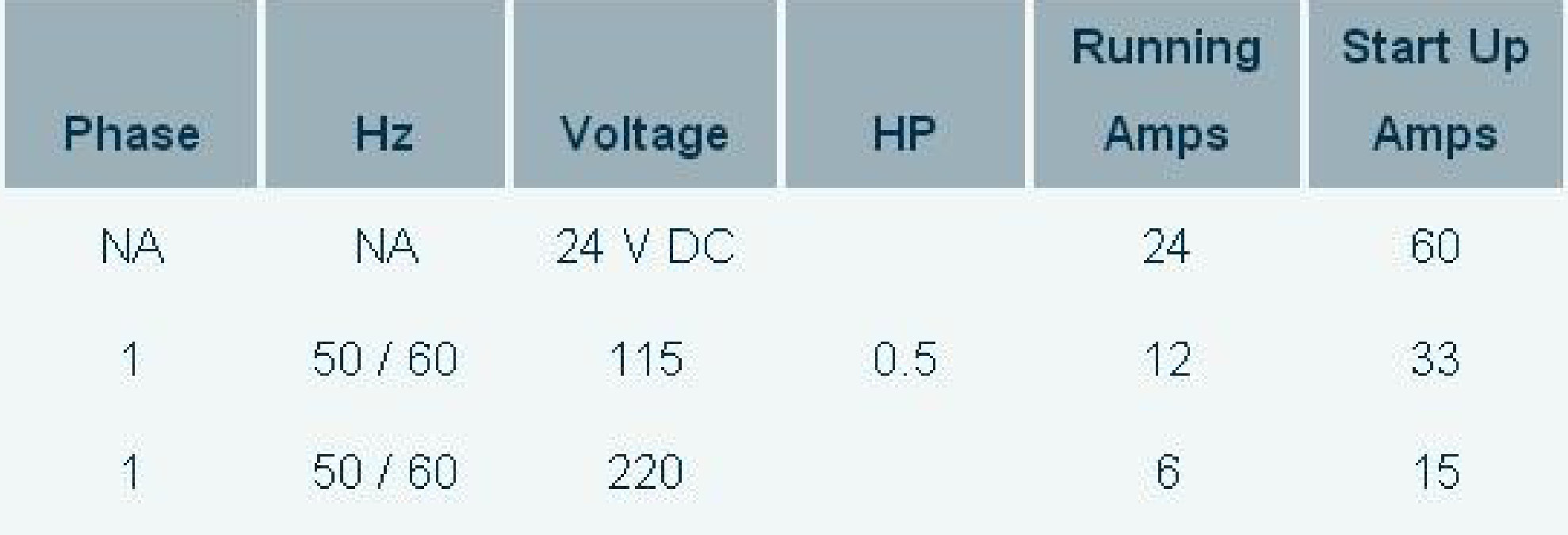

Escape 600:
 DIMENSIONS (尺寸):

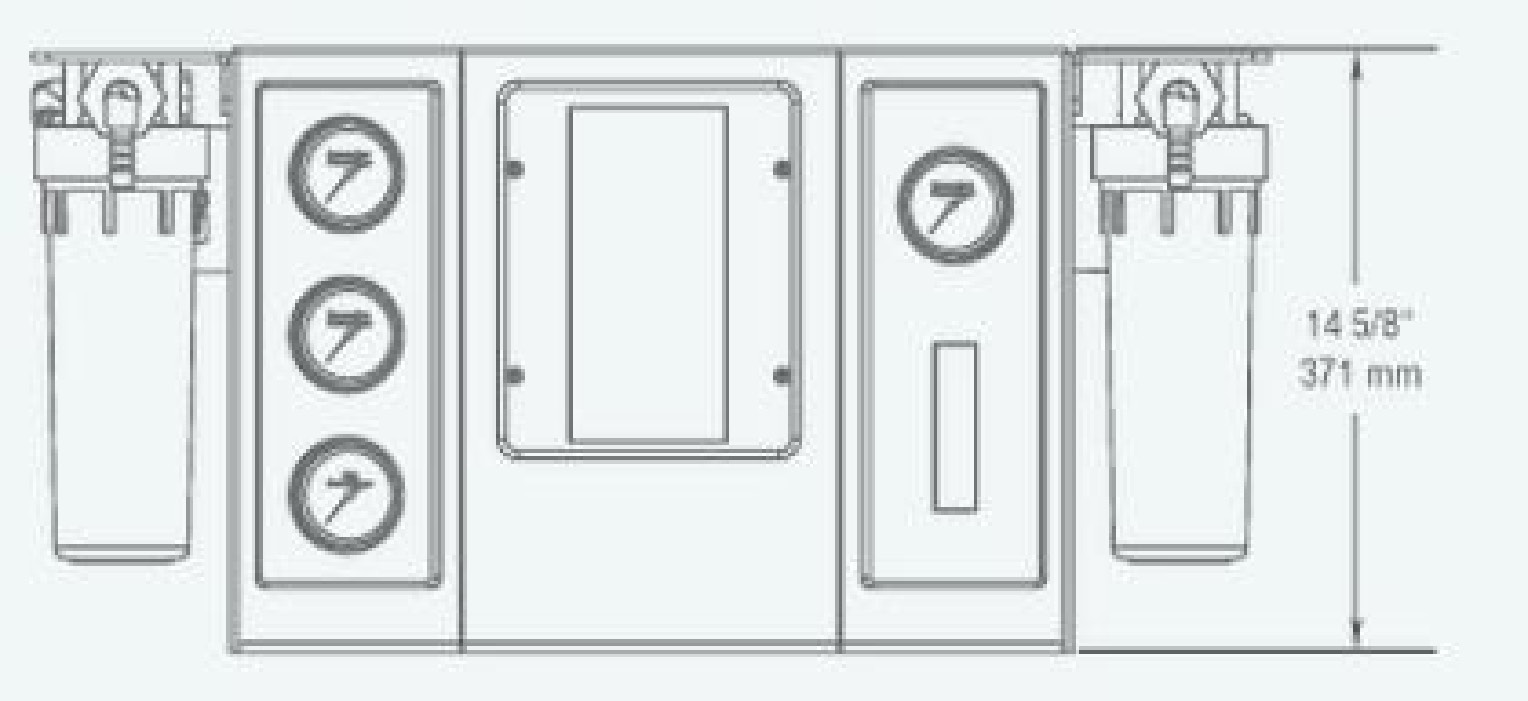

Seafari Escape Compact - Front View

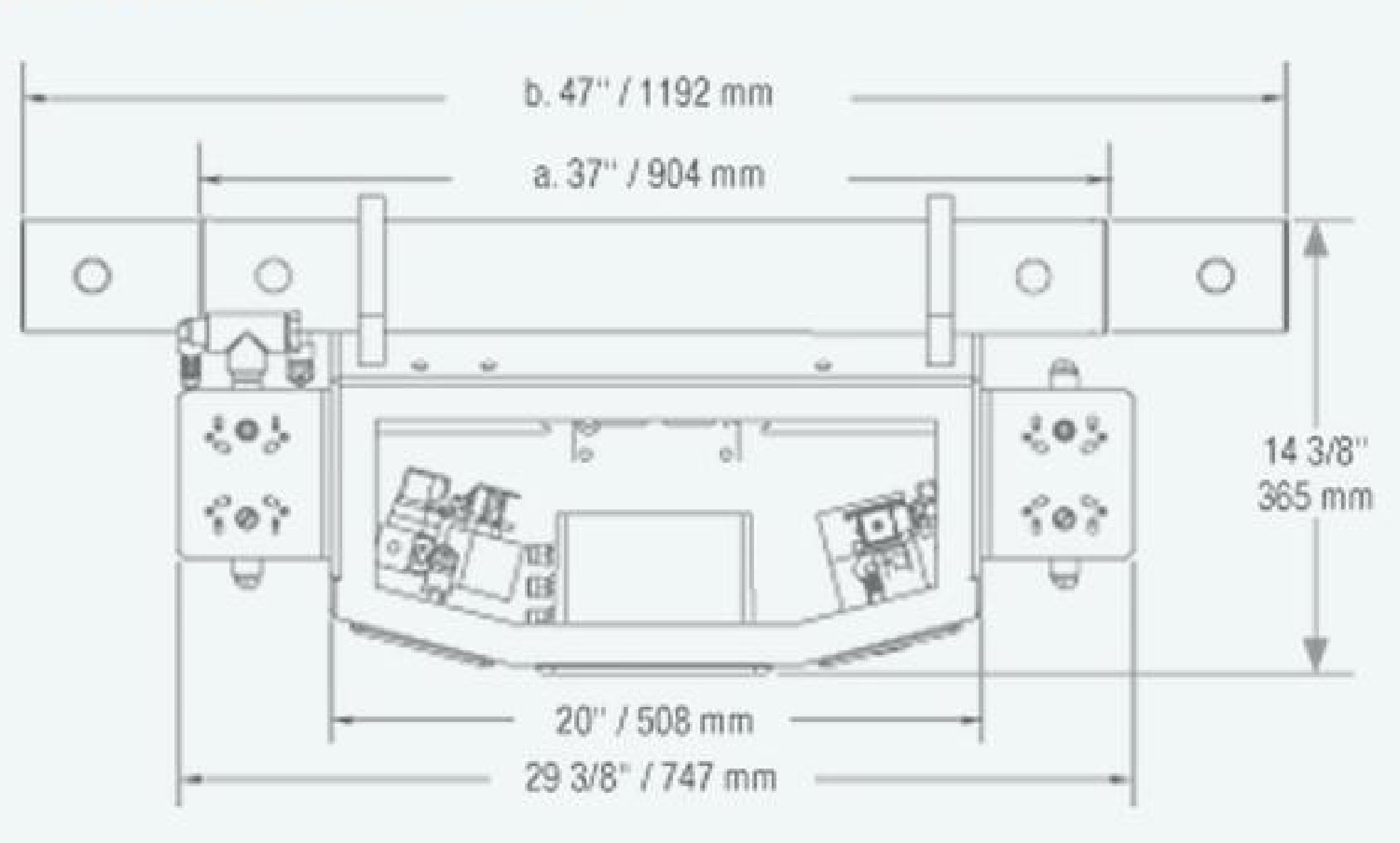

Seafari Escape Compact - Overhead View
a: SEC 200 | b: SEC 400 and 600

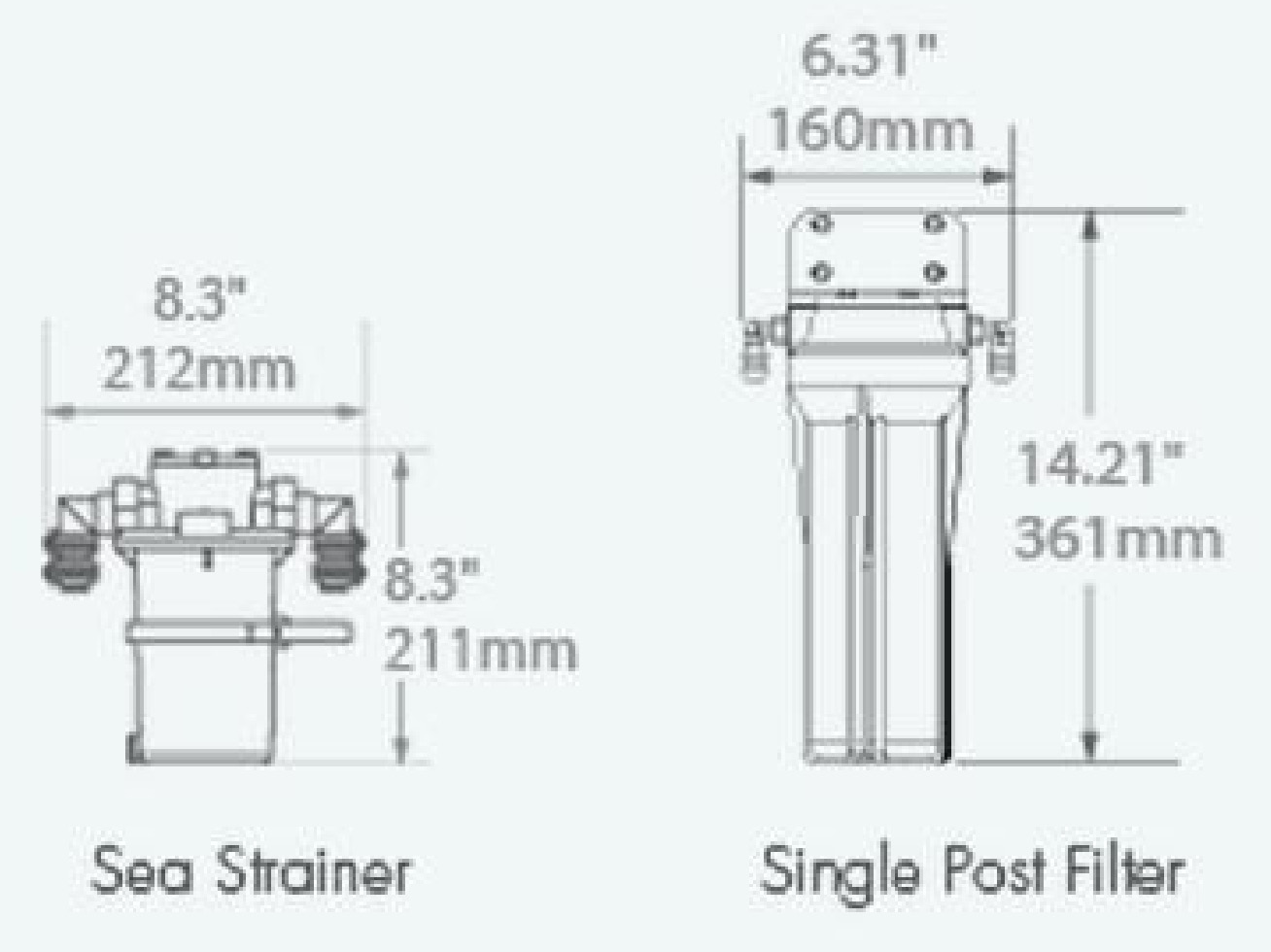

Seafari Escape Compact - Filters
