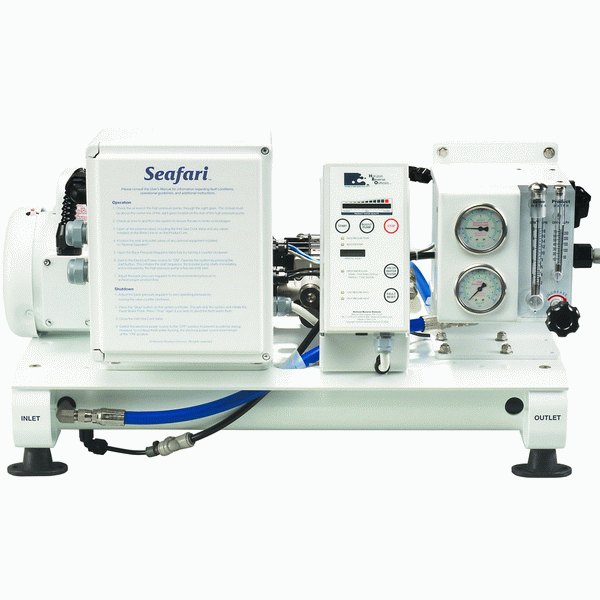

HRO Seafari Versatile – Self Contained (HRO Seafari 自助式)

OVERVIEW (概述)

The new Seafari Self Contained Versatile watermaker features a new remote mount cube design that allows easy installation and access. As always the Seafari is capable of producing 1800 gallons (6800 liters) per day, perfect for weekend fishing or blue water cruising. Its new hassle-free design has a versatile configuration which provides you with 5 inches of extra space for better fitting, access to membranes from either side of the system for easy maintenance, and better installation options. Its intuitive push button operating system gives users complete control over functions and settings. Simple and reliable, the new Seafari is the watermaker for every boater.

FEATURES :

• RemoteMountCube- for easy access to system controls.
• Extremely quiet, smooth, and with complete vibration isolation.
• Remote access to system controls.
• Space efficient design (5 inches smaller than the original Seafari SFC)
• No installation restrictions. Access membranes from both sides for easy maintenance and installation options.
• Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
• A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
• High rejection, high yield, commercial grade, and chemical resistant Membranes.
• Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
• Exclusive high efficiency Booster Pump
• Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).
• Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
• New Flow Meter for visual monitoring of the product water flow
• All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
• Water Quality Indication LED

 SPECIFICATIONS (規格):

• Product Water Produced per hour of operation: +-15% 850 psi / 56 Bar, 77oF / 25oC & 35,000 ppm TDS typical sea water
• Salt Rejection (Chloride Ion): Minimum 99.2%, Average 99.4%
• Product Water Temperature: Ambient to feed water temperature.
• Salinity Monitoring: The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
• Salinity Range: Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
• Temperature Range: Min. 33oF / .5oC Max. 122oF / 50oC
• System Feed Water: Flow: 50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 – 4.2 gpm / 11.4 – 15.9 lpm
• Reverse Osmosis Membrane: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
• Chlorine Tolerance: 0.1 ppm
• pH Range: 3-11  ( typical seawater pH is 8 )
• System Pressure:
  Feed Water
  Minimum: 6 psi / .41 bar / .42 Kg/cm2
  Maximum: 35 psi / 2.41 bar / 2.46 Kg/cm2
  System Operation
  Seawater @ 35,000 ppm & 77° F / 25° C
  Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2. (Brackish varies w/ppm)
• External Installation Water Connections: Pipe sizes supplied by the installer for connection of Horizon Reverse Osmosis supplied components.
  Feed Inlet: 3/4″ MNPT (Male National Pipe Thread, Amer. Std)
  Brine Discharge: 1/2″ FNPT (Male National Pipe Thread, Amer. Std)
  Product: 3/8″ FNPT (Female National Pipe Thread, Amer. Std)
