HRO SEAFARI VERSATILE MODULAR

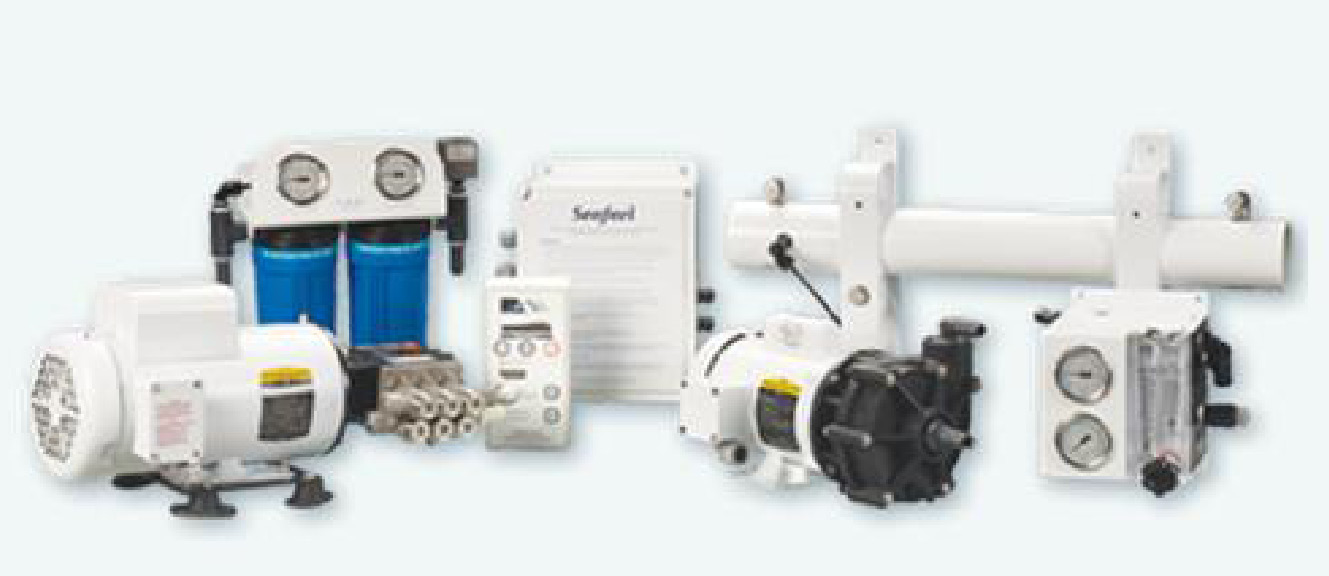

       The new Seafari Versatile modular features a remote mount cube design that allows easy installation and access. The Seafari’s modular design is streamlined and allows for easy installation and maintenance. A perfect fit for larger, long distance cruisers or for those with minimal space options, the Versatile’s production capacities range from 19 to 75 gallons per hour. Like all of HRO’s line of watermakers, the Seafari Versatile modular is capable of withstanding the ocean’s harshest conditions, while maintaining its high level of quality.

   OVERVIEW (概述):

  • Modular setup offers unlimited installation options for limited spaces.
  • Remote Mount Cube – for easy access to system controls.
  • Extremely quiet, smooth, and with complete vibration isolation.
  • Remote access to system controls.
  • Space efficient design (5 inches smaller than the original Seafari SFC)
  • No installation restrictions. Access membranes from both sides for easy maintenance and installation options.
  • Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
  • A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
  • High rejection, high yield, commercial grade, and chemical resistant Membranes.
  • Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
  • Exclusive high efficiency Booster Pump
  • Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).
  • Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
  • New Flow Meter for visual monitoring of the product water flow
  • All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
  • Water Quality Indication LED
  SPECIFICATIONS (規格):

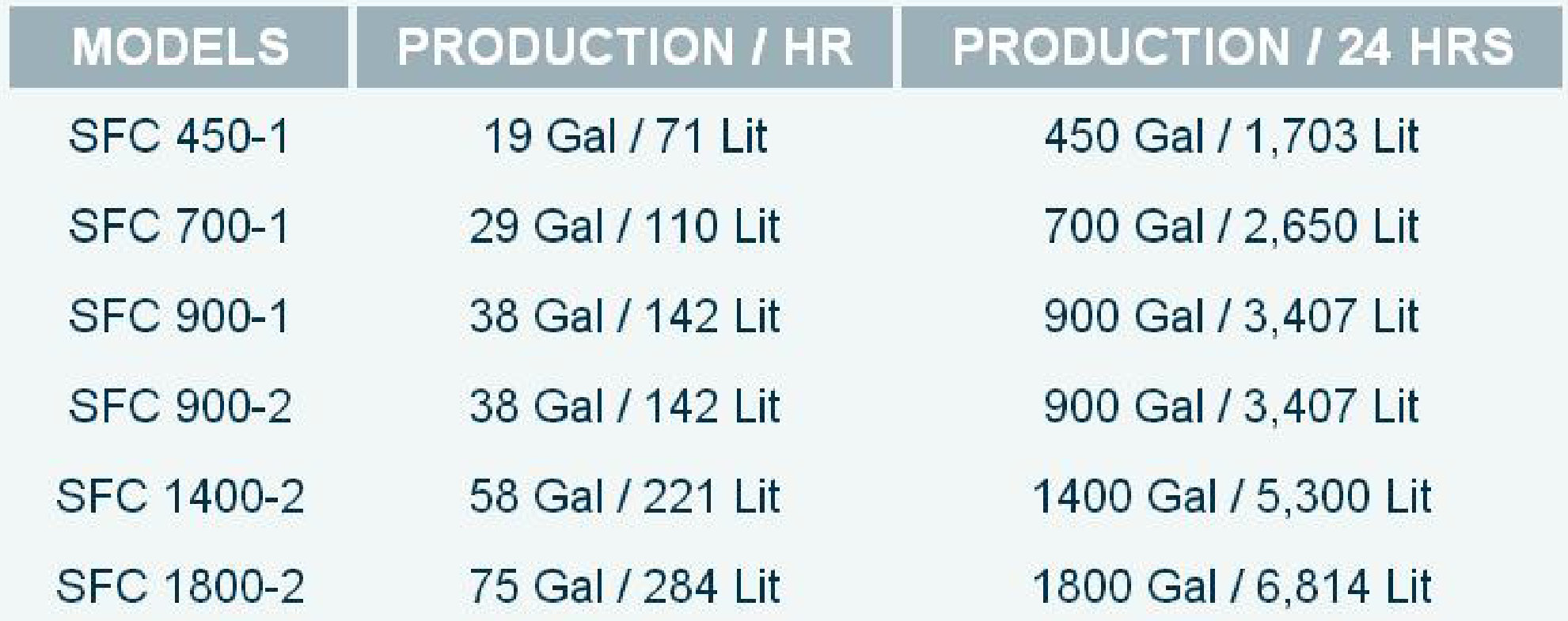

  • Product Water Produced per hour of operation: +-15% 850 psi / 56 Bar, 77oF / 25oC & 35,000 ppm TDS typical sea water
  • Salt Rejection (Chloride Ion): Minimum 99.2%, Average 99.4%
  • Product Water Temperature: Ambient to feed water temperature.
  • Salinity Monitoring: The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
  • Salinity Range: Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
  • Temperature Range: Min. 33oF / .5oC Max. 122oF / 50oC
  • System Feed Water: Flow: 50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 – 4.2 gpm / 11.4 – 15.9 lpm
  • Reverse Osmosis Membrane: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
  • Chlorine Tolerance: 0.1 ppm
  • pH Range: 3-11 ( typical seawater pH is 8 )
  • System Pressure:
    Feed Water
    Minimum: 6 psi / .41 bar / .42 Kg/cm2
    Maximum: 35 psi / 2.41 bar / 2.46 Kg/cm2
    System Operation
    Seawater @ 35,000 ppm & 77° F / 25° C
    Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2. (Brackish varies w/ppm)
  • External Installation Water Connections: Pipe sizes supplied by the installer for connection of Horizon Reverse Osmosis supplied components.
    Feed Inlet: 3/4″ MNPT (Male National Pipe Thread, Amer. Std)
    Brine Discharge: 1/2″ FNPT (Male National Pipe Thread, Amer. Std)
    Product: 3/8″ FNPT (Female National Pipe Thread, Amer. Std)

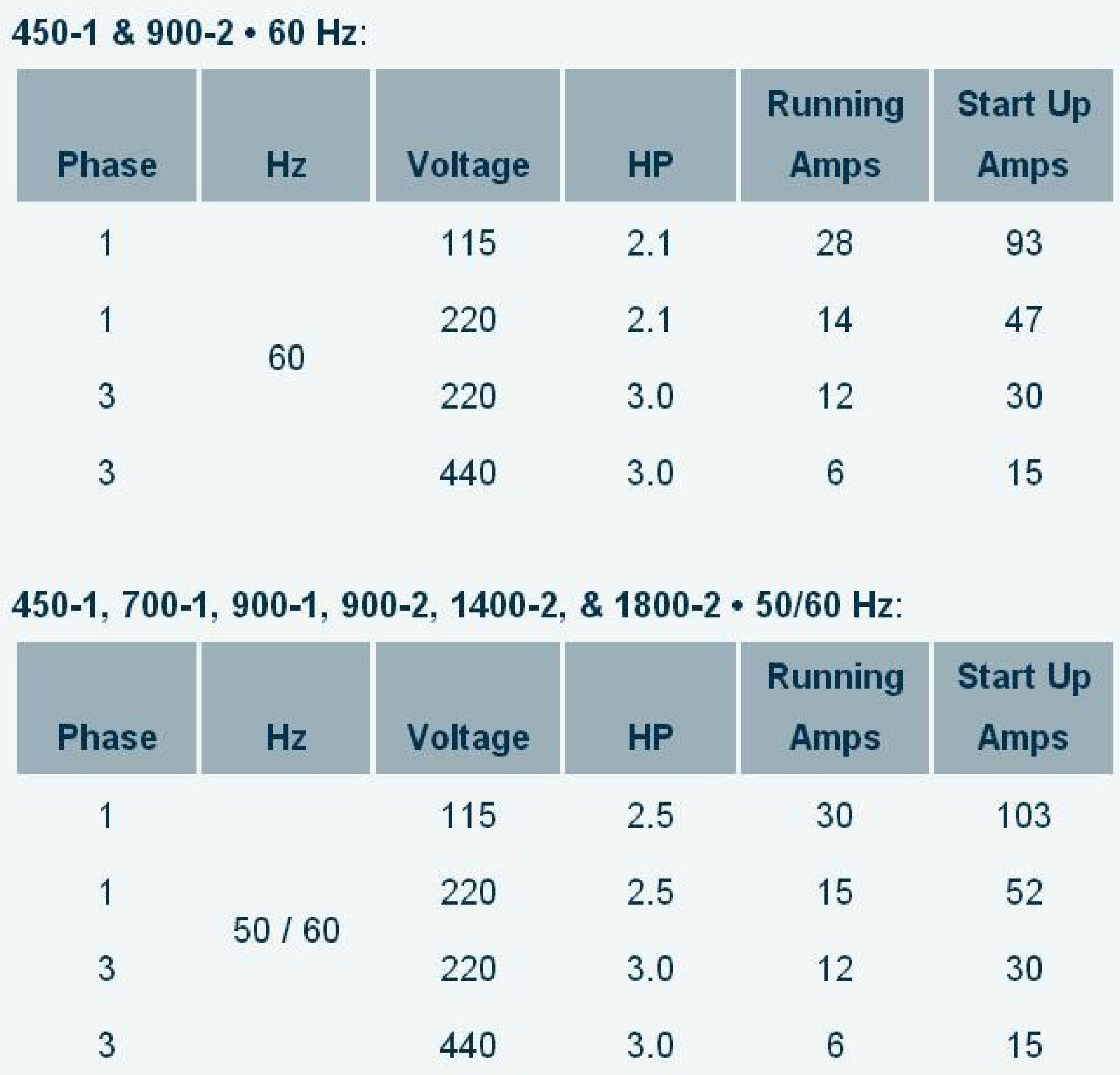

       ●Electrical – High Pressure Pump Motor and Booster Pump:



  DIMENSIONS (尺寸):

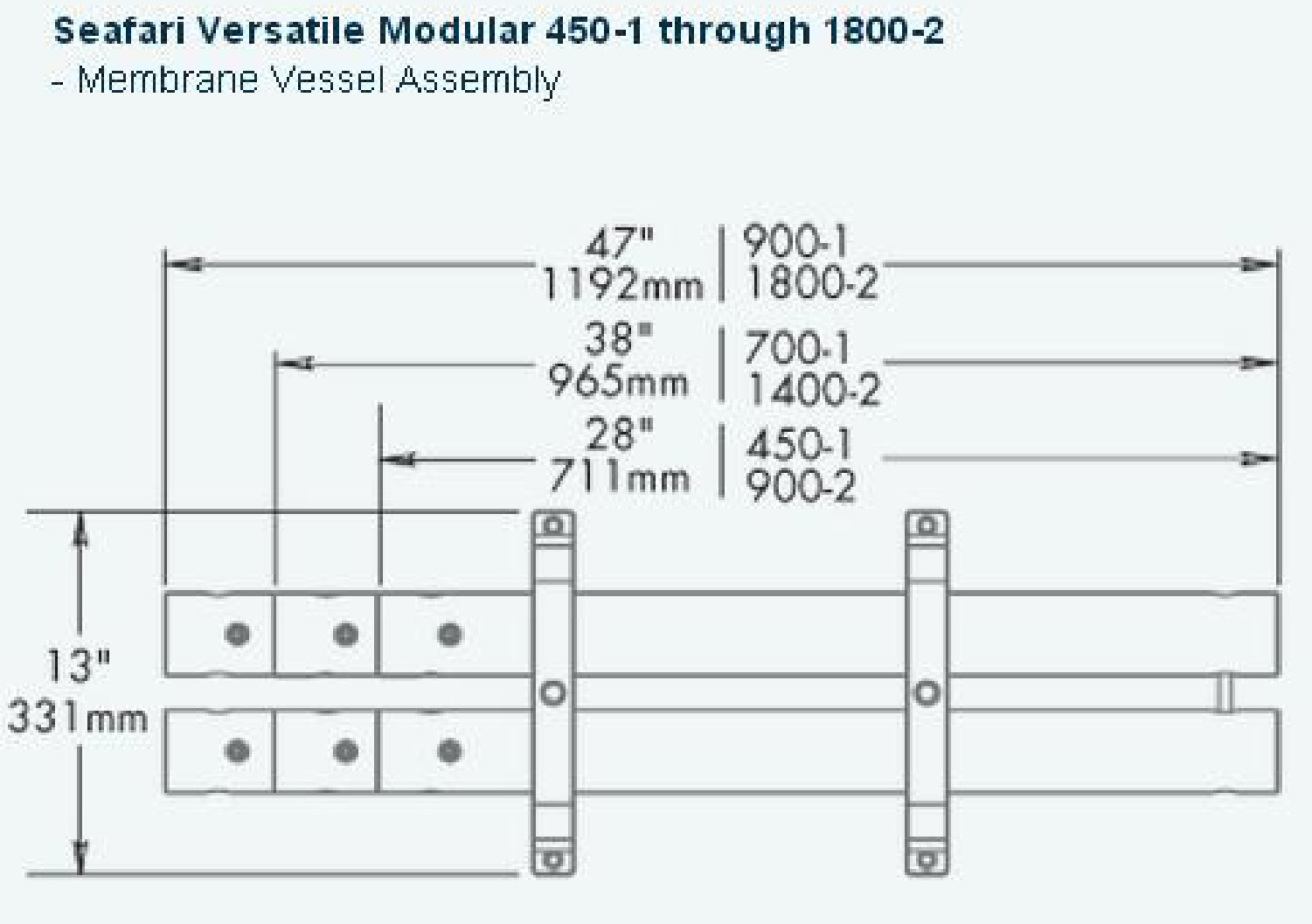

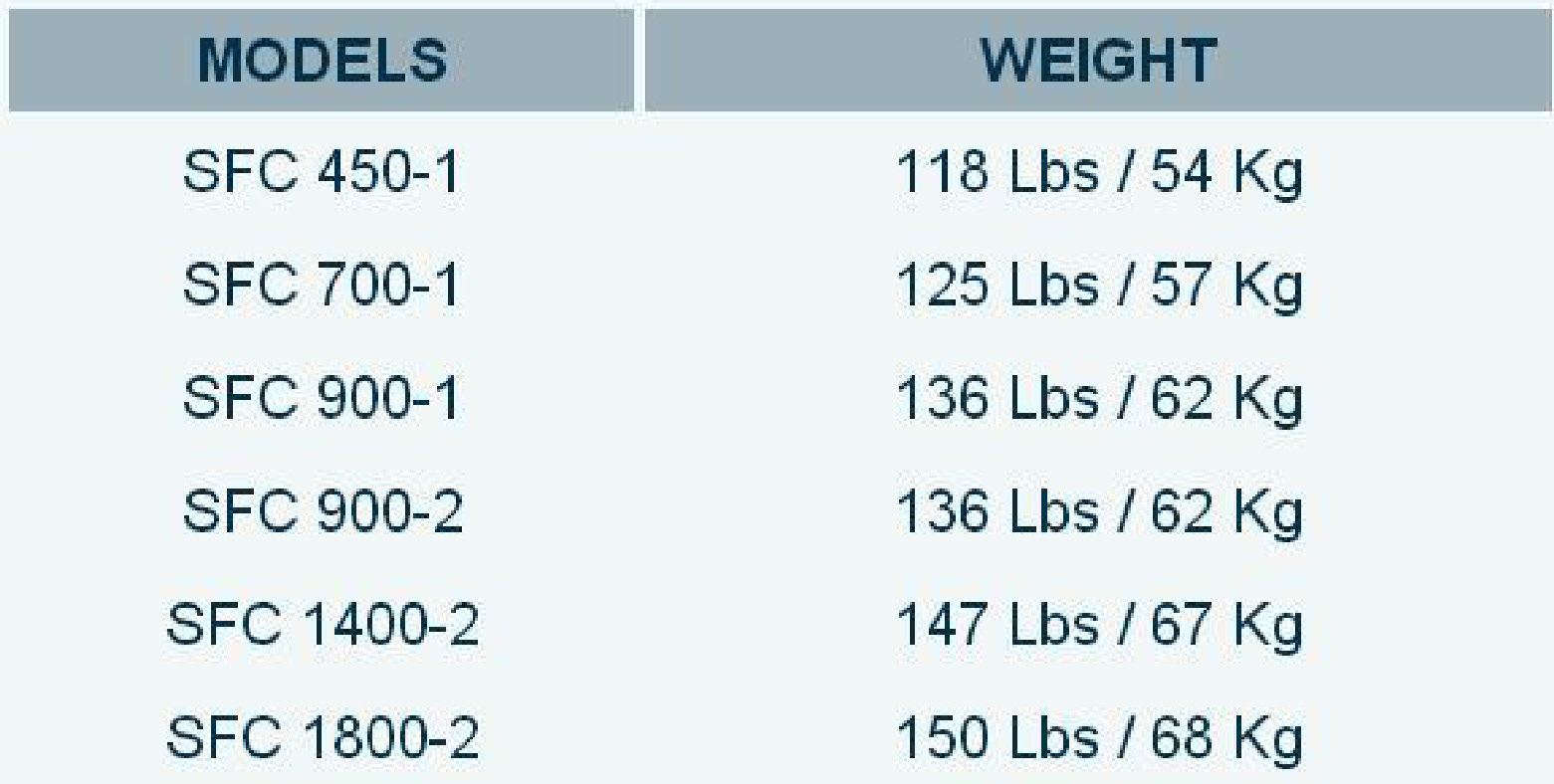

 ●Seafari Versatile Modular 450-1 through 1800-2

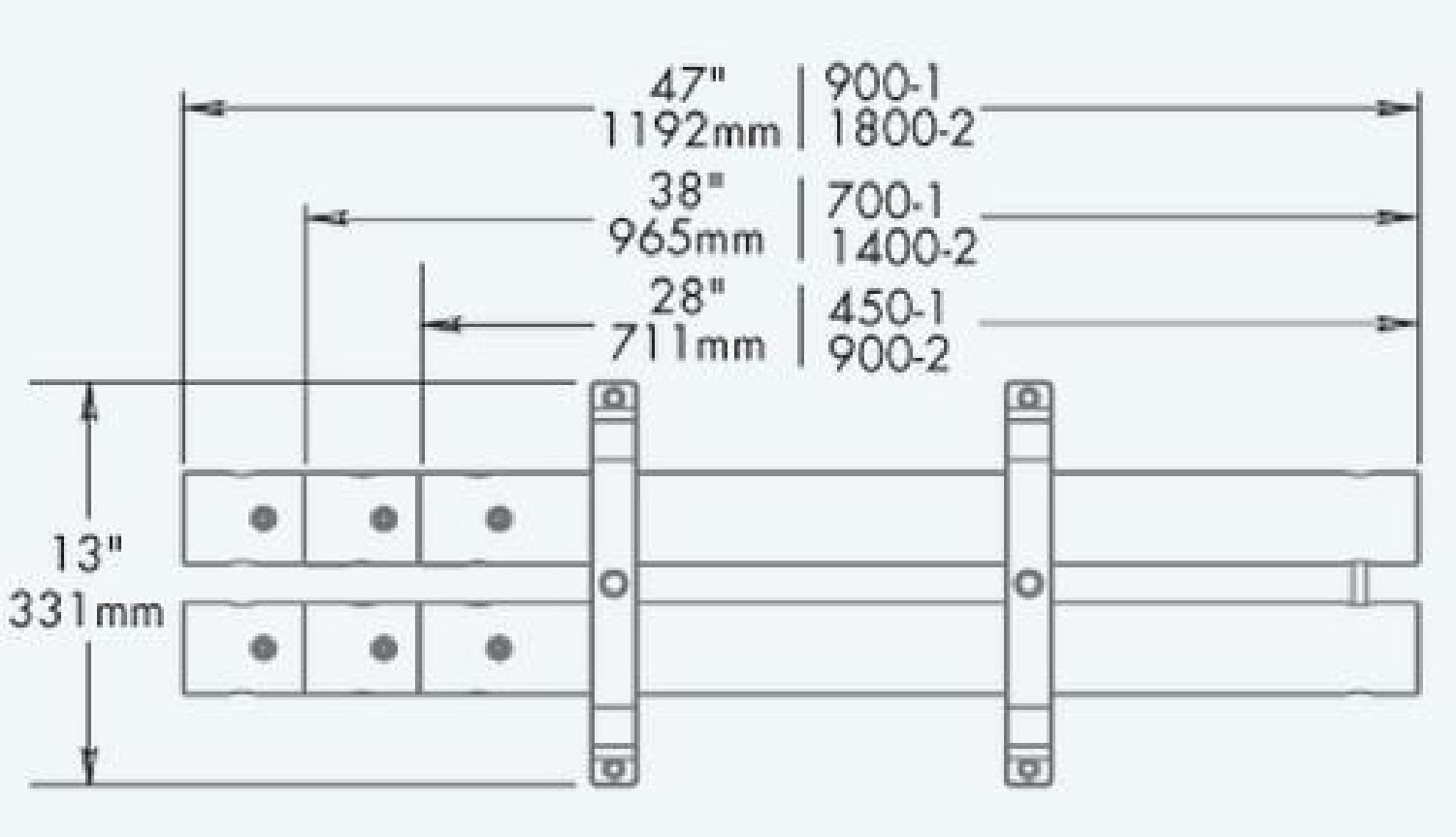

 - Membrane Vessel Assembly

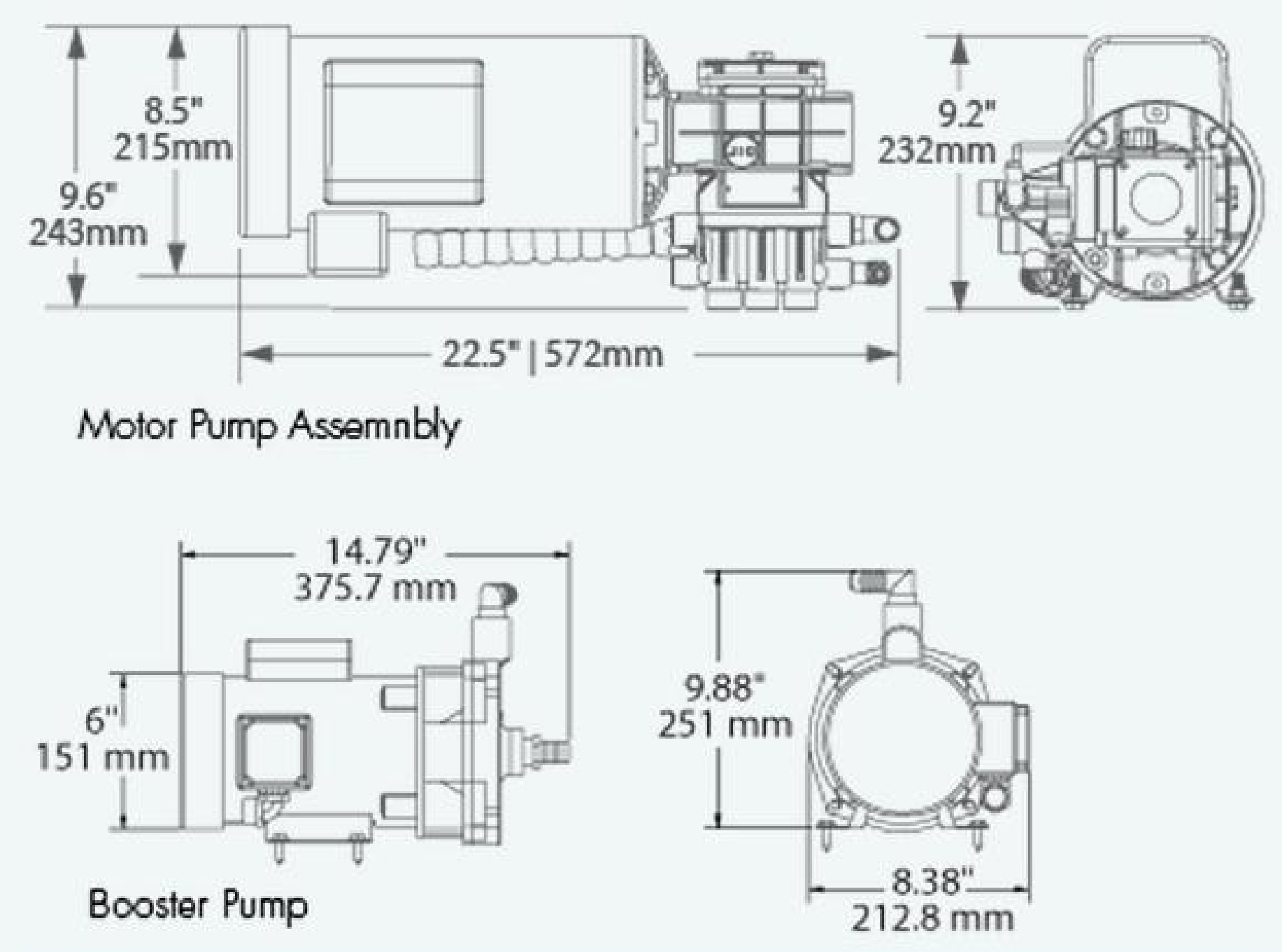

●Seafari Versatile Modular - Pump Motors

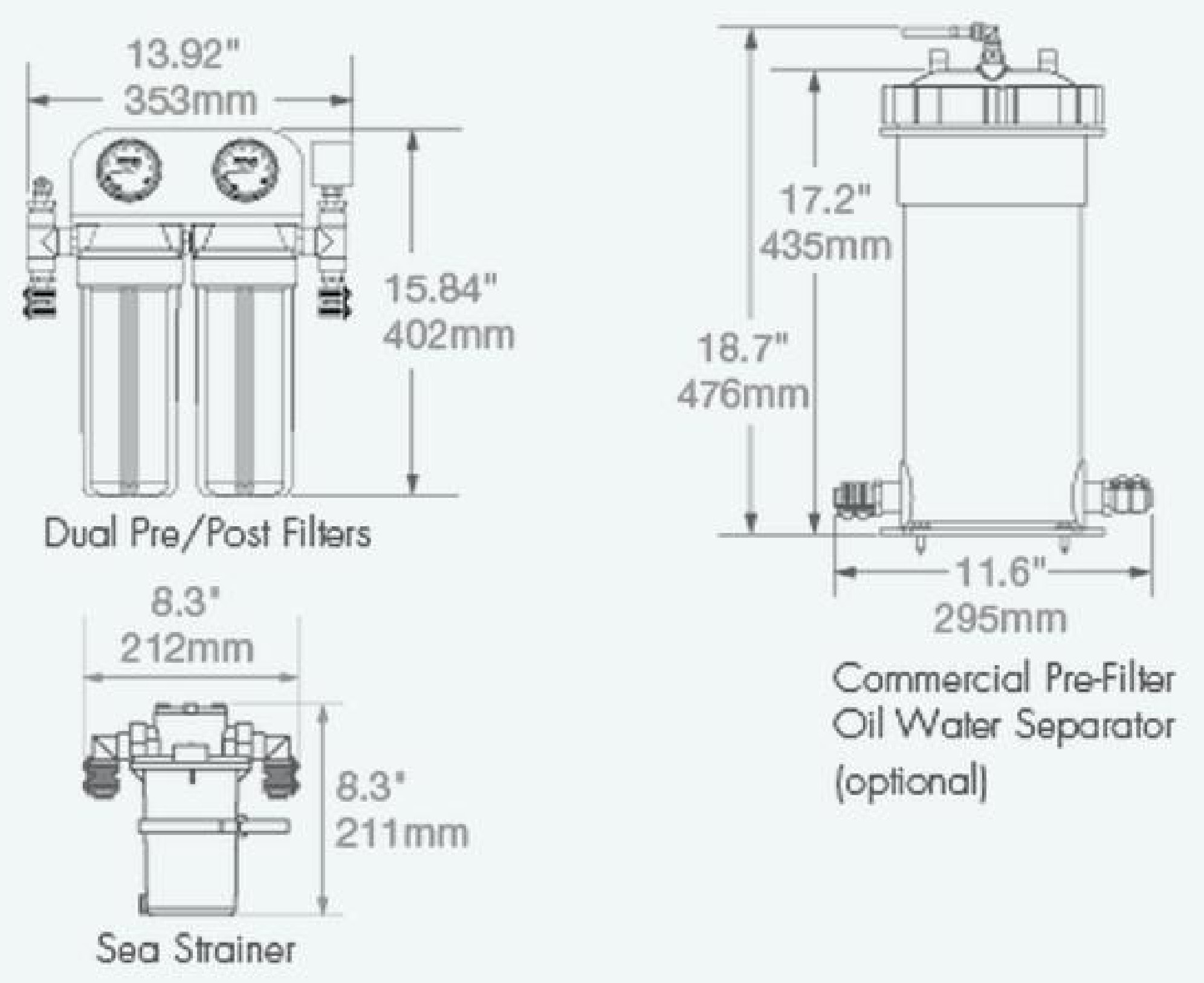

●Seafari Versatile Modular - Standard and Optional Filters
