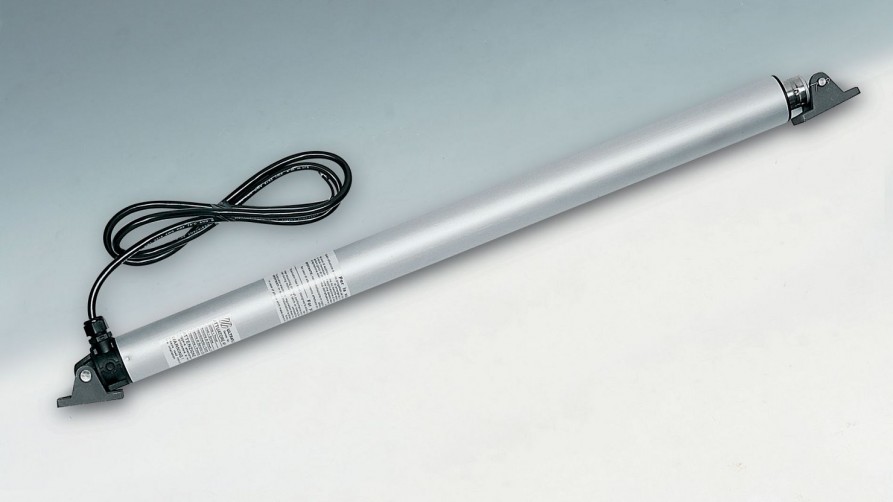

The AV hatch lifters are electromechanical products, especially designed for marine use on pleasure boats. They allow full or partial opening and closing of heavy engine hatches, peak tanks, hatch beams etc.
By activating a switch, it is possible to lift the hatch to any desired position from closed to full open; an internal self- locking mechanism will maintain the position preventing any accidental hatch closing. In case of a power failure an emergency device allows for manual opening.

TECHNICAL FEATURES

• According to the load required, the AV hatch lifter can be mounted individually, or in twin cylinder installation for heavier loads. It is also possible to install more then two AV actuators in multiple applications
• Maximum load for single installations: 1200N (120 kg – 265 lbs)
• Maximum load for dual installations: 2400N (240 kg – 529 lbs)
• Maximum load is recommended not to be exceeded
• Supplied with all mounting hardware.

• Stainless steel telescopic ram for manual operation in case of emergency
• Available on request without manual emergency opening device for high performance boats.
• Circuit breaker to stop accidental overloading of the system and electronic stop at closed or full open position
• IP 65 protection rated
• Speed: 25mm/sec no load applied, 17 mm/sec maximum load
• Current absorption in single installations: 10A at 12V, 5A at 24V
• Current absorption in dual installations: 20A at 12V, 10A at 24V
• AV 12VDC models are Ignition Protected. UL1500 – ISO8846 approved

OPTIONAL COMPONENTS

RB12 - 40738Y Relat box 12V

RB24 - 40742C Relay box 24V

It contains the relays needed for cycle revertion.

SW20 - 69116J 1 x 3 way single pole momentary switch

BR/AV - 80382I Spare fixing bracket
